Services · Job work

ESD Paint Job Work

On-site application of ProtectA Pro ESD conductive and anti-static paints for floors, walls, work surfaces and polypropylene bins. Built on a conductive polymer matrix, the system delivers stable, durable electrostatic protection across industrial and electronics manufacturing environments.

Applications

Where we apply it

Click any card to read more about that application.

Application

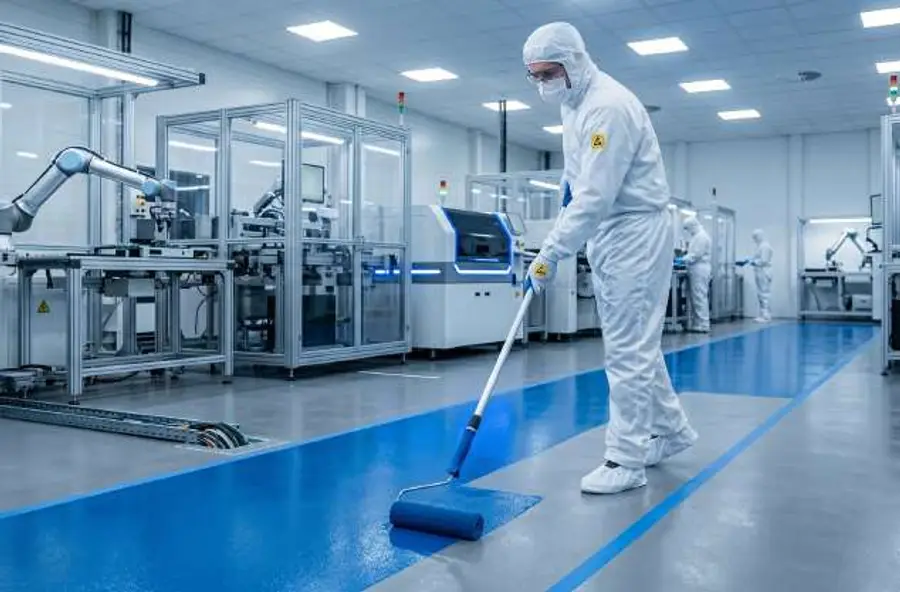

Floors, Walls & Surfaces

The floor is the largest charge-generating surface in most plants: every footstep and every trolley movement builds a charge that eventually finds a path to ground, often through a component. A conductive floor coating gives that charge a controlled path instead. We prepare and prime the substrate, lay copper earthing strips bonded to the facility ground, then apply the ProtectA Pro topcoat.

Cleanroom, SMT and general production floors
Walls and partitions in static-controlled areas
Workbenches, racks and inspection surfaces
Point-to-point and point-to-ground resistance testing on completion

Enquire about this

Application

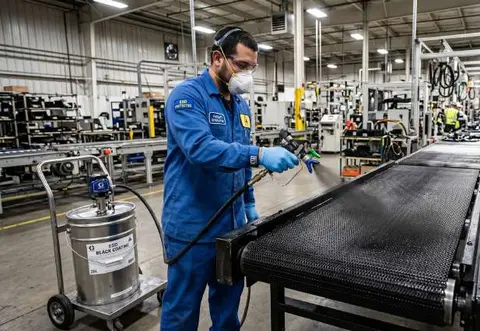

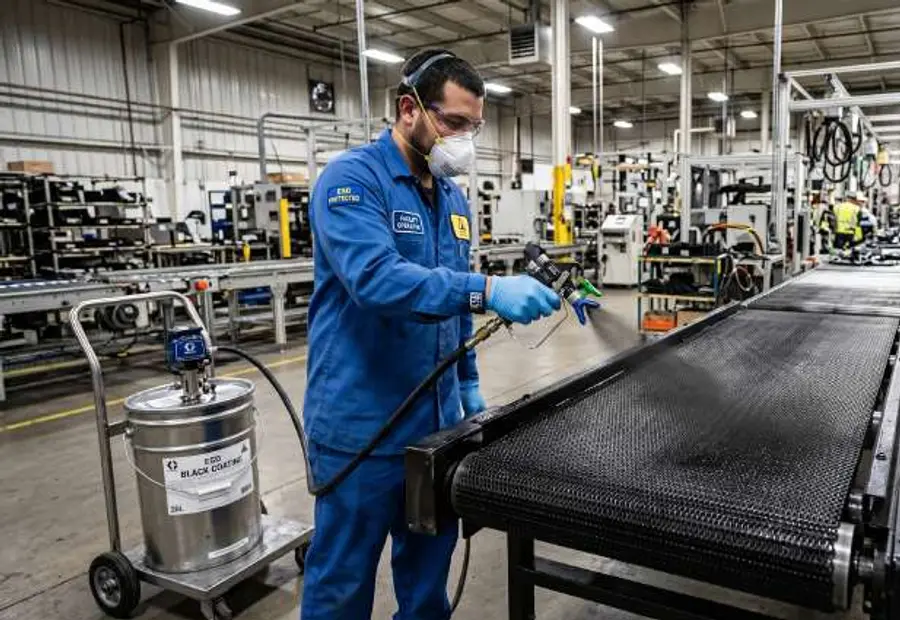

Conveyor Belt Systems

Belts run continuously against rollers and product, which makes them one of the most dependable charge generators on a line. Coating the belt surface and the surrounding structure lets charge dissipate as it forms, rather than building until it discharges into whatever passes next.

Belt surfaces, conveyor frames and guide rails
Transfer and buffer sections between machines
Spray-applied for an even film across a running surface
Selected for adhesion and durability under continuous operation

Enquire about this

Application

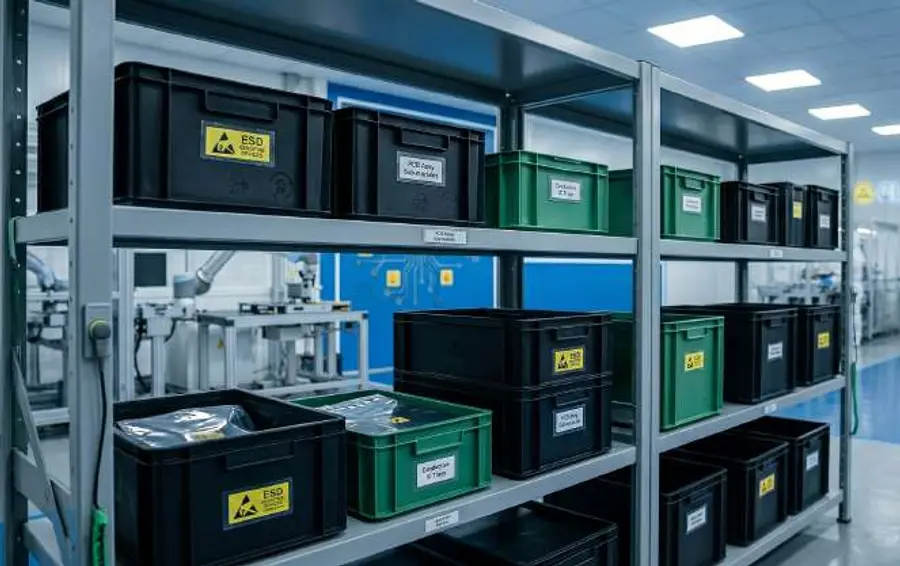

Plastic Bins & Polypropylene Materials

Polypropylene is an excellent insulator, which is exactly the problem: an untreated bin holds charge and passes it to whatever is placed inside. Coating bins, crates and racking turns the storage system into part of your ESD control plan rather than a gap in it.

Bins, crates and totes used between processes
Racking, shelving, trolleys and fixtures
Extends ESD control beyond the floor to everything parts touch
Existing bins can be coated in place of replacement

Enquire about this

Application

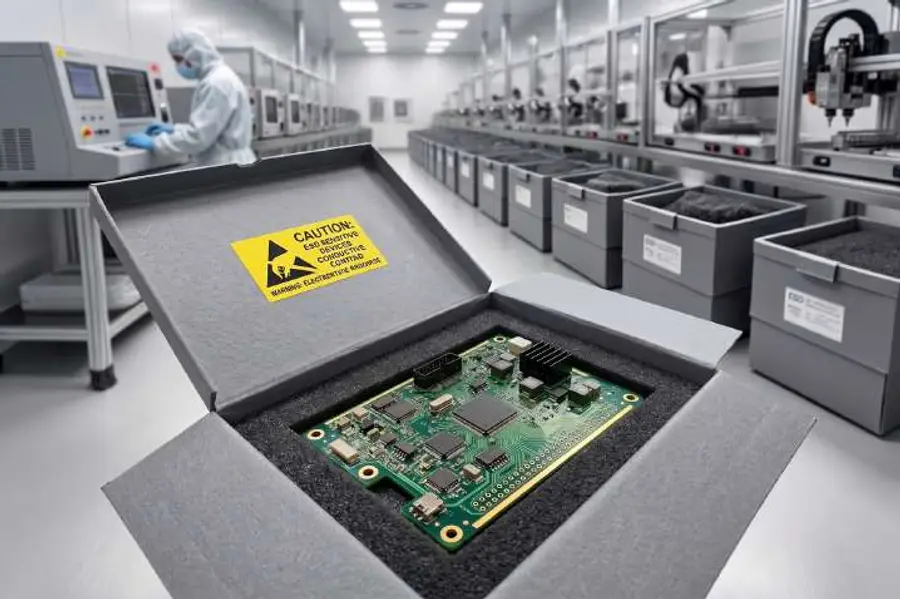

EVA Foams & Packaging

Foam inserts sit in direct, sustained contact with boards and components, so an insulating foam is in the worst possible position to hold a charge. A conductive coating on the foam and the surrounding packaging keeps the pack at the same potential as the part it carries.

EVA foam inserts and cut trays
Outer boxes and packaging carrying ESD-sensitive assemblies
Complements the ESD packing range EMS supplies
Suited to reusable packaging that stays in circulation

Enquire about this

Application

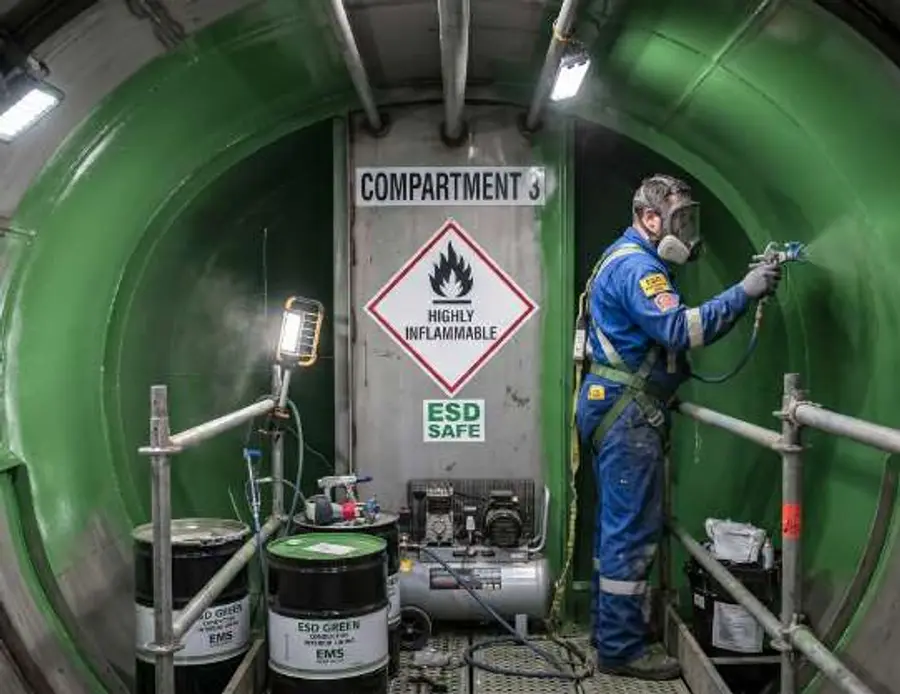

Flammable Storage & Transport Systems

Here the risk is not a damaged component but ignition. A static discharge inside a tank, a compartment or a transport vessel holding flammable vapour is a safety event, so static control becomes a safety control rather than a quality one.

Petroleum and solvent storage tanks and compartments
Fuel handling areas and transport vessels
Hazardous and explosive-atmosphere industrial areas
Applied under the site’s own permit-to-work and safety procedures

Enquire about this

Application

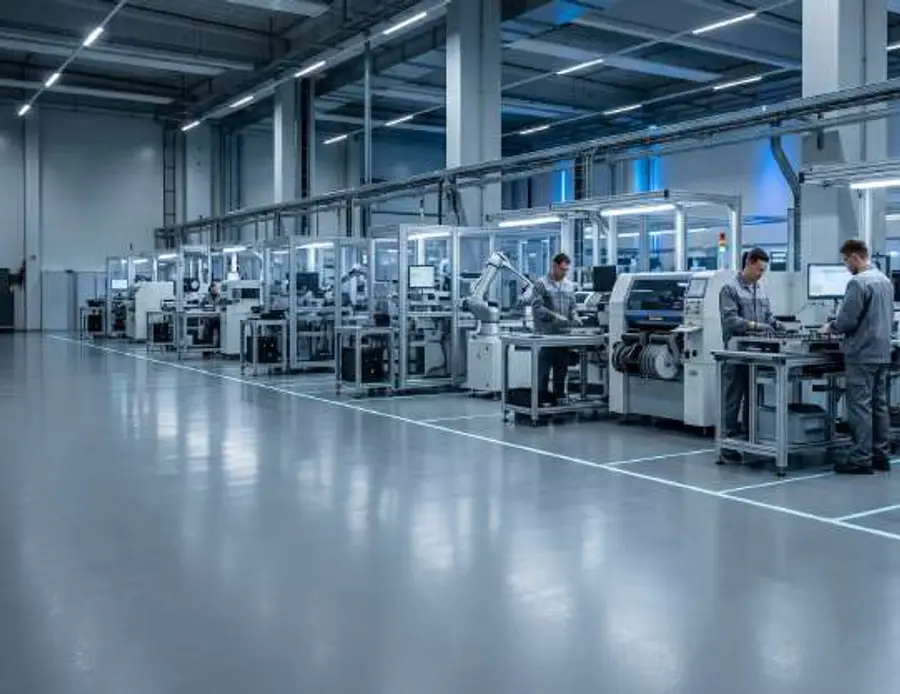

Industrial Manufacturing Environments

Beyond electronics assembly, static control matters wherever product quality, instrumentation or operator safety is sensitive to discharge. ProtectA Pro can be applied across a whole facility rather than a single room, giving one consistent standard from goods-in through to dispatch.

Semiconductor and electronics manufacturing
Automotive and EV component assembly
Aerospace and defence facilities
Warehousing and logistics floors

Enquire about this

The coating we apply

ProtectA Pro: ESD Conductive & Anti-Static Paints

An advanced range of ESD conductive and anti-static paints for floors, walls, surfaces and polypropylene bins, built on a conductive polymer matrix for stable, durable electrostatic protection in industrial environments.

Datasheet (PDF)
